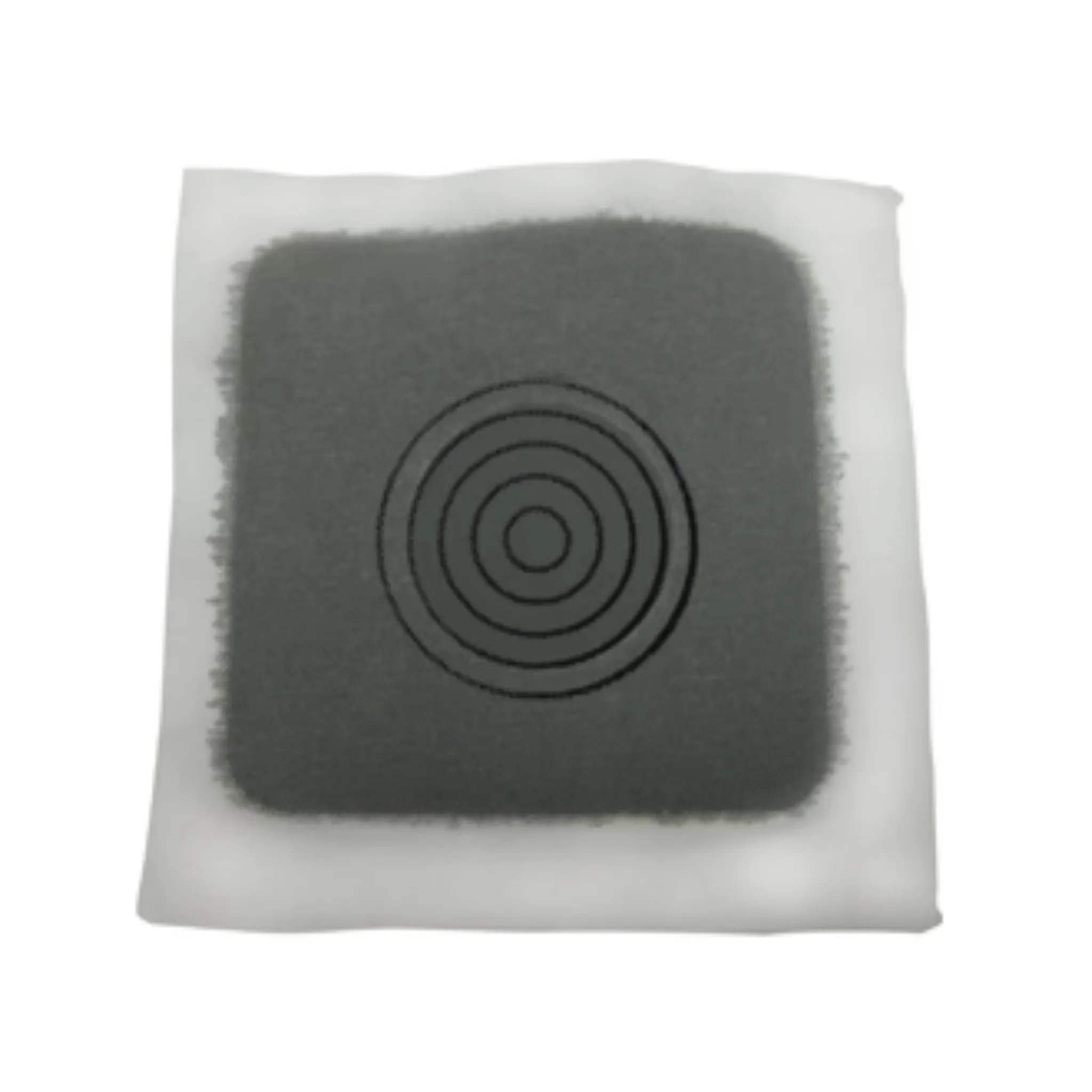

Elastoproof Collars are a versatile solution for creating durable and flexible seals around pipes, drainage outlets, cabling, and other substrate fixtures. They effectively bridge gaps between penetrations and surfaces, accommodating movement, vibration, and cracking without compromising the waterproofing membrane's integrity. Designed for compatibility with all Gripset membranes, adhesives, and coatings, Elastoproof Collars offer a reliable and long-lasting sealing solution.
Key Features
- Seamless Elastic Seal: Creates a flexible, watertight seal around penetrations.
- Bridges Gaps: Accommodates movement and prevents water ingress.
- Fast and Effective Application: Easy to install for efficient project completion.
- 100% Elastic Recovery: Maintains a tight seal even under movement and vibration.
- High Strength & Tear Resistance: Provides a durable and long-lasting solution.
- Eliminates Sealants: Avoids potential adhesion issues associated with sealants.
- Gripset Compatibility: Guaranteed compatibility with all Gripset products.
Uses
- Sealing around pipes, drainage outlets, cabling, and other penetrations.
- Internal and external corner detailing (CN 90 and CN 270 collars).
- Suitable for various substrates, including concrete, masonry, and metal.
Benefits
- Ensures long-term sealing protection in critical areas.
- Prevents water damage and leaks.
- Eliminates the need for sealants and potential adhesion problems.
- Compatible with all Gripset waterproofing systems.
- Easy and efficient installation process.
Application Guide
- Measure the diameter of the penetration and cut a hole in the collar 50% of the measured diameter.
- Apply a liberal coat of Gripset membrane around the penetration.

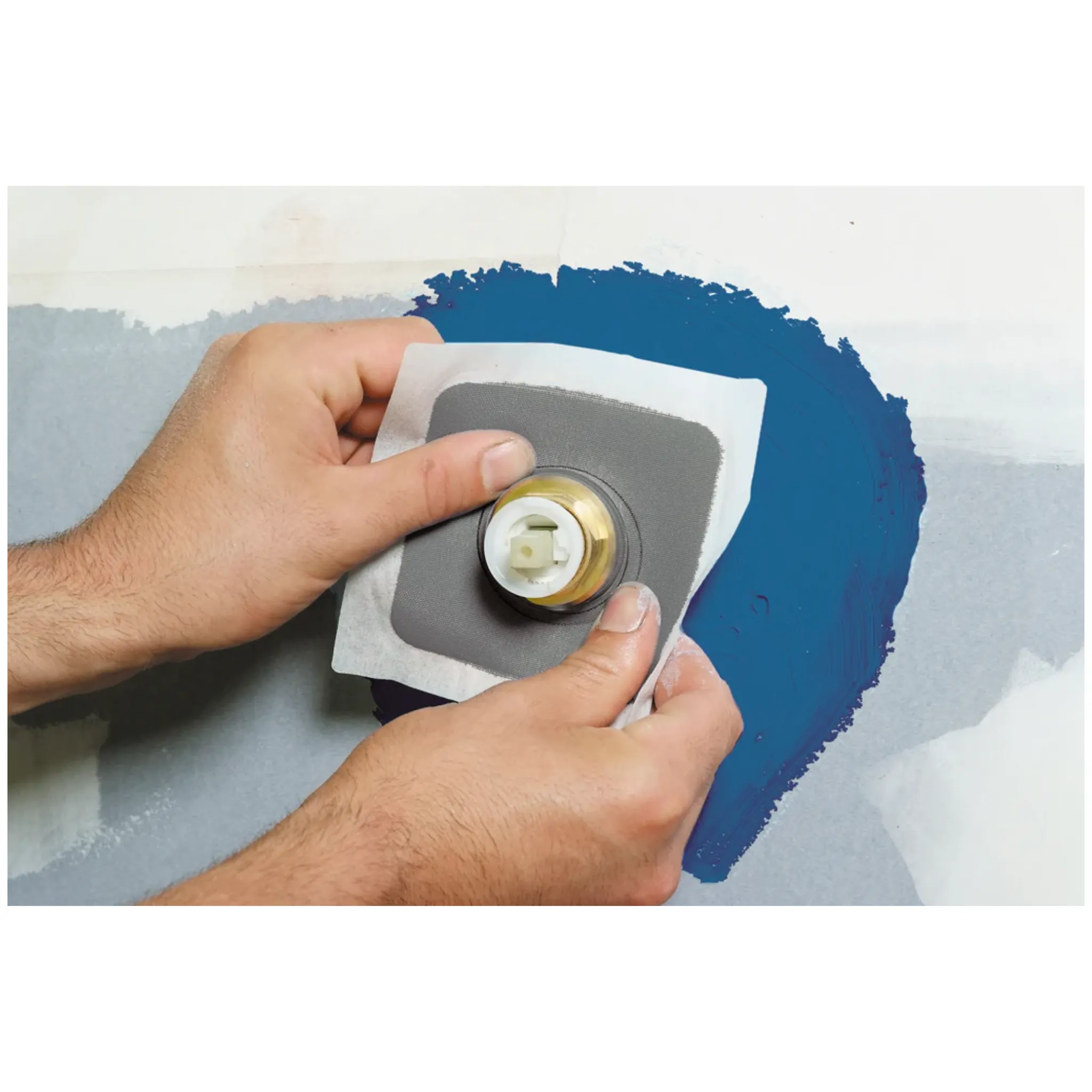

- Slide the collar over the penetration and embed it into the wet membrane, ensuring full contact.
- Smooth out any creases or air pockets and remove excess membrane.
Limitations
- Not compatible with solvent-based materials.
- Do not apply when surface temperature is below 5°C or above 30°C.
Additional Information
| Sizes | Small (120mm x 120mm), Medium (250mm x 250mm), Large (300mm x 300mm) |
|---|---|
| Material | Elastic, waterproof membrane |
